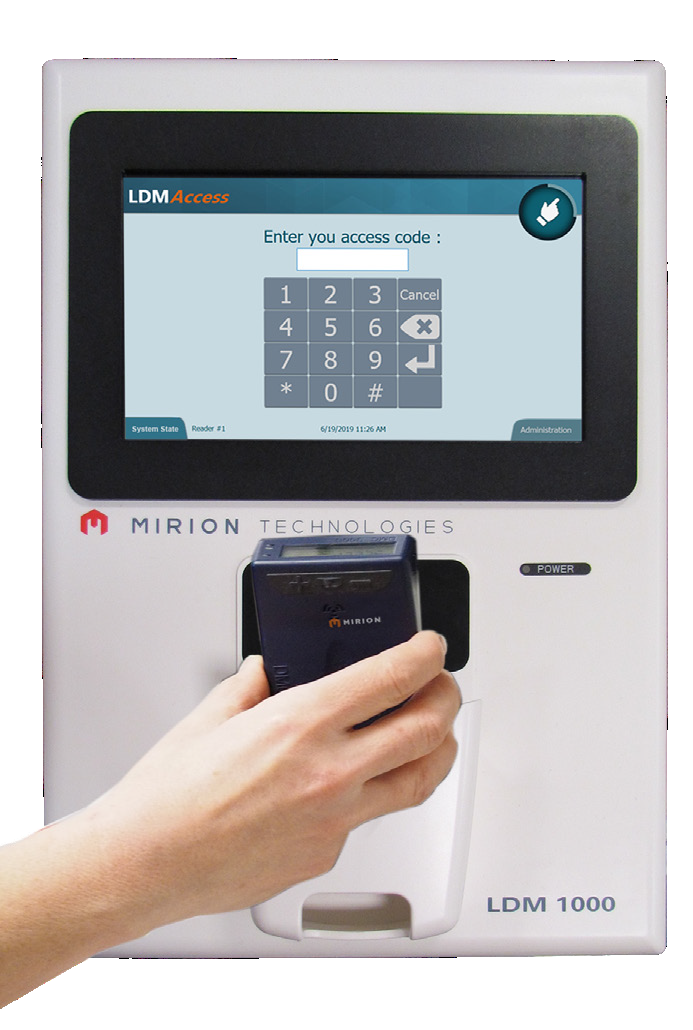

Service & reparation Request a quoteThe LDM 1000 is a ready to use reader, to enter and exit radiological controlled areas.
At the entrance of the controlled area, the LDM 1000 allows the user to fill in the data required by the dosimetry system and to activate the dosimeter. At the exit of the controlled area, the reader acquires dosimeter data and transfers it automatically to the dosimetry system.
The LDM 1000 is equipped with a multilingual touchscreen and can get adapted to site specific badge readers.
LDM 1000 is available in two versions that cover all the needs for entrance or exit gates:
– LDM 1000 : this version can be installed on a wall, without integration.
– LDM 1000i : this space-saving version is dedicated for portal integration at exit gates.
Data sheet
Contact
Stefan Mårtensson
- Product Manager
- Phone: +46 (0)18-56 68 03
- Mobile: +46 (0)76-826 58 37
- stefan.martensson@gammadata.se
Technical specification
Functions:
- Possible replacement of a LDM 2000 by a LDM 1000 or use within an existing mix-population of existing readers
- DosiServ and DosiCare software compatible for access control mode
- Displayed worker data inputs (identification /RWP /task code)
- Parameters (reader mode) are automatically loaded at connection time by dosimetry system
- Local database to store transactions made in offline mode
- Automatically restores local data when the network is available
- Dynamic language choice by each worker (6 standard languages with possible customization)
LDM 1000i dimension: 315 x 216 x 104 mm (HxWxD), Weight: 2,1 kg
LDM 1000c dimension: 315 x 216 x 122 mm (HxWxD), Weight: 4,2 kg
Power supply: 230V AC
Power consumption @ 230 VAC: 17W typ.
Operating temperature range: from 0°C to +40°C
Storage temperature range: from -10°C to +55°C
Humidity range: 30% to 90%, non-condensing.
IP certifications: LDM 1000i is IP40 (front face only), LDM 1000c is IP30
EMC: exceeds IEC 61000-6.2 and ETSI EN301 489–1 requirements
Optional: LDMAccess software
