SAB-100
Need help?
We help you find the right solution. We offer support, service, calibration and training for all our products. Contact us for a service agreement!
Service & reparation Request a quoteThe SAB-100 probe could be used with any CSP survey meter or device that can handle CSP protocol. Its a phoswich detector with 100 cm² for direct measurement of alpha and beta emitters.

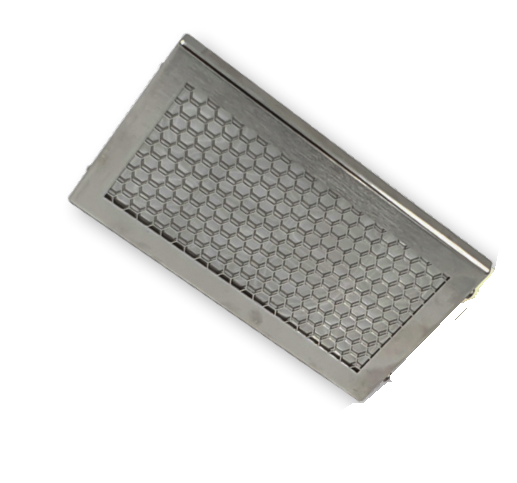

Spares: Foil with frame EM76708
Data sheet
Contact
Stefan Mårtensson
- Product Manager
- Phone: +46 (0)18-56 68 03
- Mobile: +46 (0)76-826 58 37
- stefan.martensson@gammadata.se
Technical specification
Detect Alpha and Beta
Detector type: Sandwich type, ZnS adhered to 0,5 mm plastic detector
Energy range: Beta > 150 keV, alfa > 3 MeV
Measurement range: 0 – 10000 cps
Detector area: 102 cm²
Detector window: 6 µm mylar
Temp: -10°C to 45°C
Casing: Aluminium
Size: 313 x 94 x 84 mm
Vikt: 670 g
Typical efficiency over 2 pi
Am-241 = 37%
Pu-239 = 37%
Sr/Y-90 = 37%
Cl-36 = 37%
co-60 = 13%
