Platinum Coater

Need help?

We help you find the right solution. We offer support, service, calibration and training for all our products. Contact us for a service agreement!

Service & reparation Request a quote

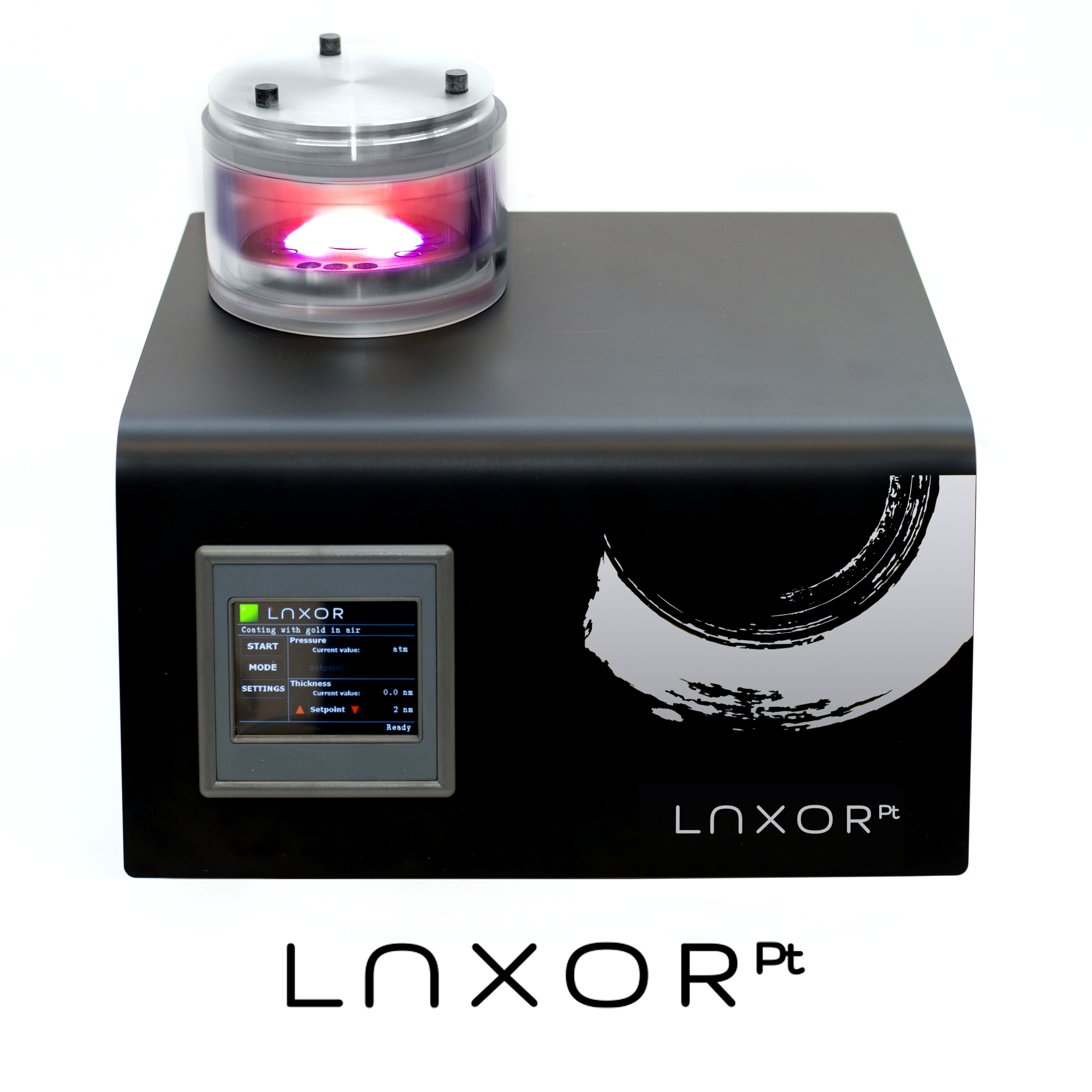

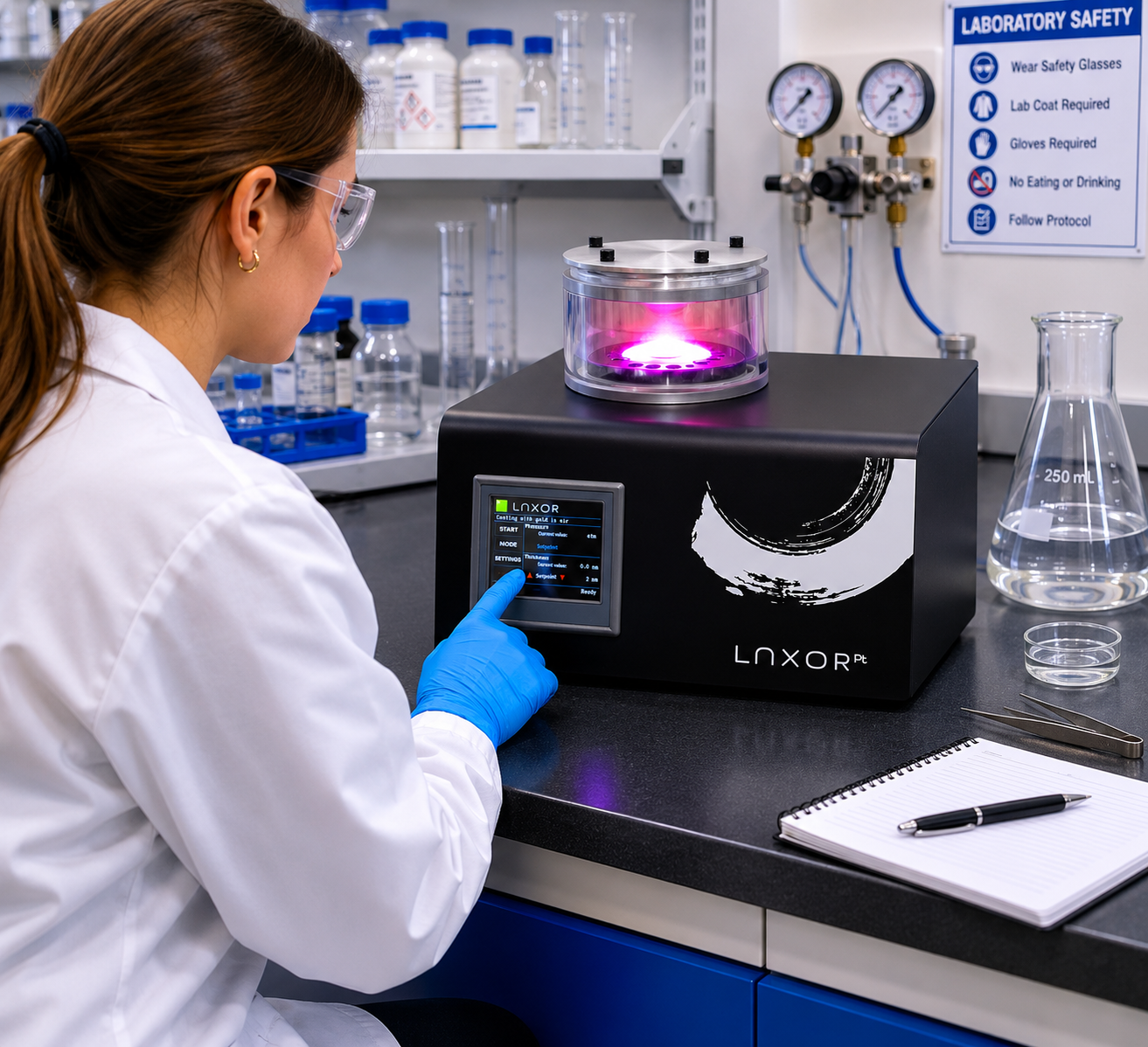

The LUXORPt is a highly innovative, fully automated sputtering device which applies a fine grain platinum or gold coating from 1 to 100 nm thickness.

LUXOR’s unique A² technology assures that the gold or platinum is sprayed in a highly controlled and precise manner, resulting in an extremely uniform, thin and homogeneous coating.

This allows your scanning electron microscope to show the best possible image quality.

Contact

Chris Bradburn

Chris

Technical specification

System:

  • Pt or Au coating with air or argon
  • Maximum capacity: 7 x Ø 12.5 mm or 3 x Ø 25 mm stubs
  • Average coating time: 4 – 5 minutes (based on resp. 2 nm or 4 nm platinum coating)
  • Average coating time: 5 minutes (based on a 10 nm gold coating)
  • Vacuum & drying modes
  • Low energy dual stage pump
  • Vacuum & drying modes: 7 Pa to 150 Pa (continuously selectable)
  • Au/Pt layer thickness: 1 to 100 nm (continuously selectable)
  • Process time: 1 to 600 minutes (continuously selectable)
  • Process chamber: Borosilicate glass Ø 100 mm x 150 mm height
  • Implosion shield: PET Ø 120 mm x 150 mm height
  • Vacuum connector: DN 16 KF
  • Gas supply: Air or argon (0,6 bar)
  • Dimensions: 340 x 340 x 290 (mm, W x D x H)
  • Weight: 12,5 kg
