BAI9125 – Drinking water monitor
Need help?
We help you find the right solution. We offer support, service, calibration and training for all our products. Contact us for a service agreement!

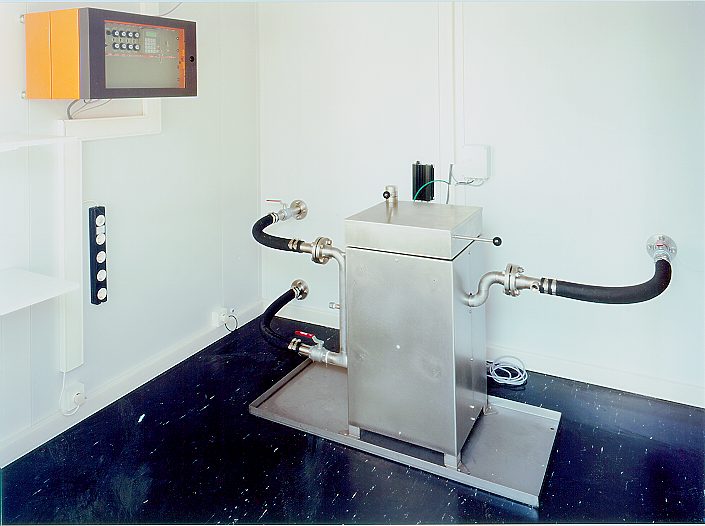

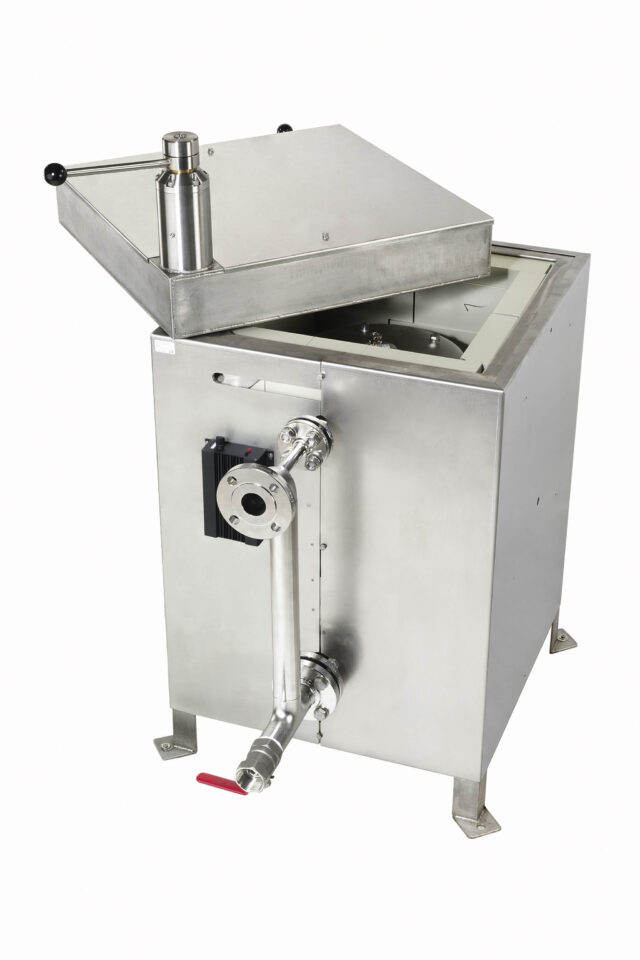

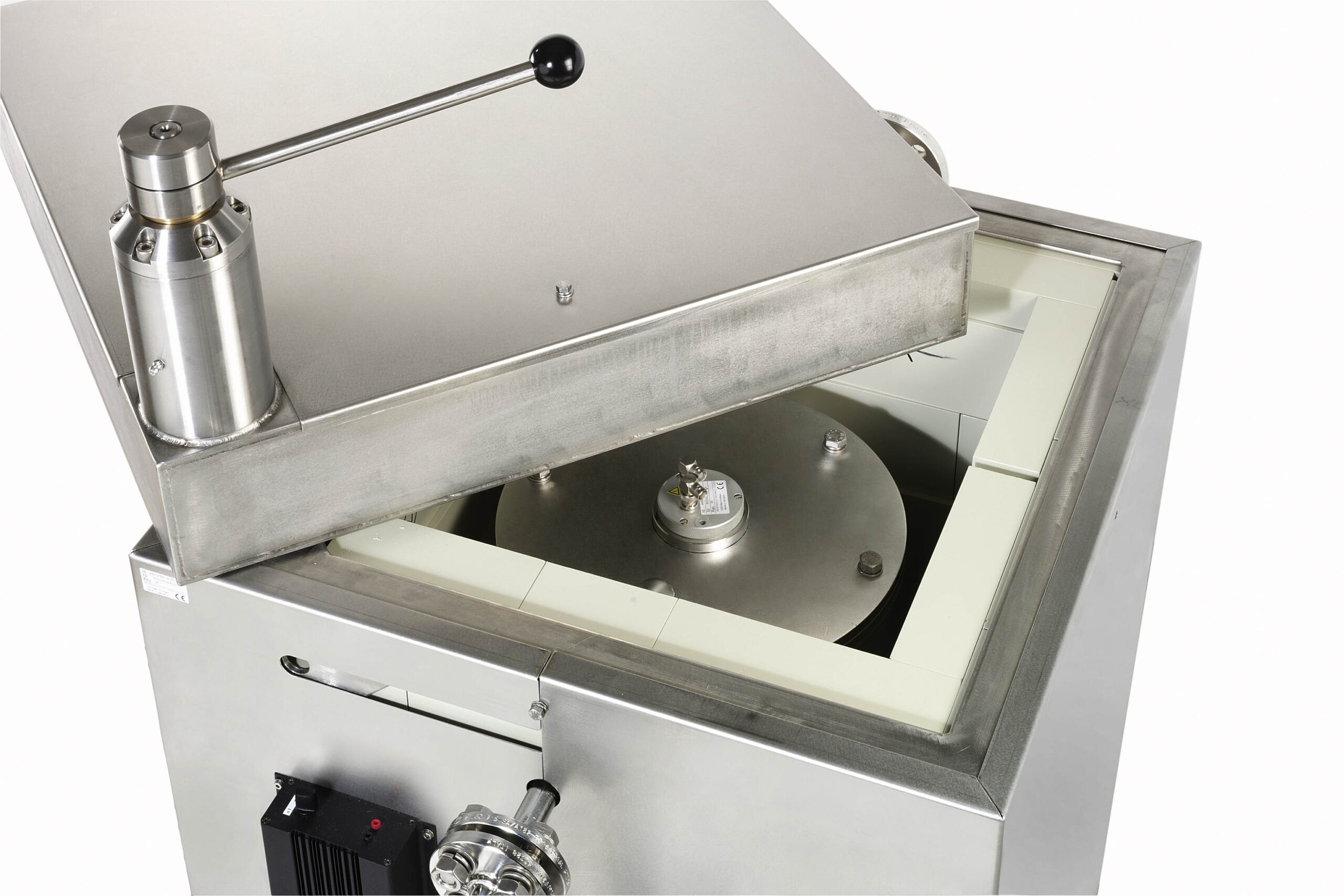

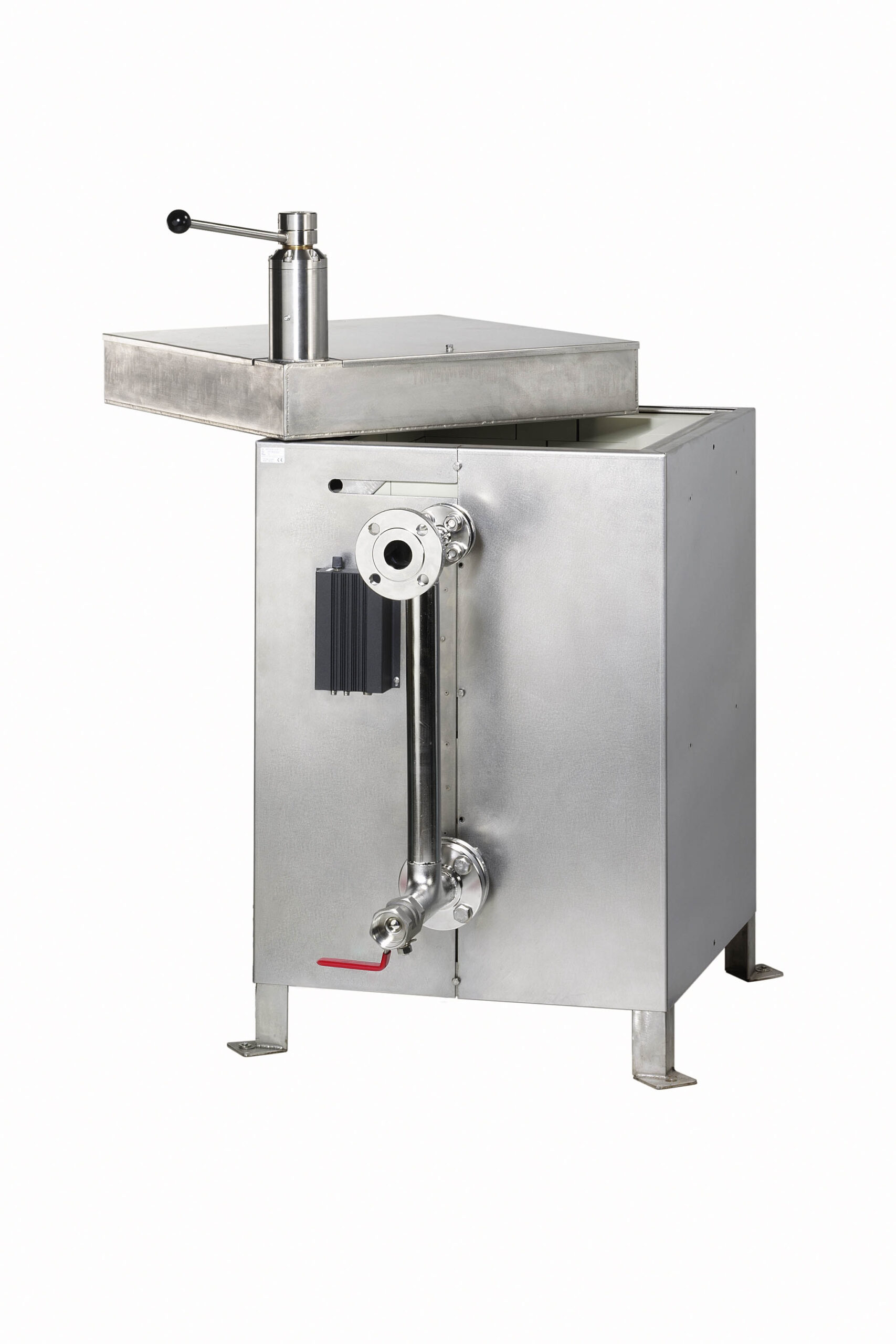

Service & reparation Request a quoteSpectroscopic instrument for measuring radioactive content in drinking water in real time. It is a complete solution for drinking water producers who want to measure their drinking water without manual sampling. The system is permanently installed and consists of a measuring volume with an integrated NaI detector for the radiological analysis. The instrument can help water producers ensure that aquifers are not affected by radiological fallout in the event of a nuclear incident.
Data sheet
Contact
Stefan Mårtensson
- Sales - Radiation Detection
- Phone: +46 (0)18-566803
- Mobile: +46 (0)76-8265837
- stefan.martensson@gammadata.se
Technical specification
Energy range: 0.050 MeV – 2.0 MeV
Detection Limits: See datasheet for conditions
– Co-57, 0,29 kBq/m³
– I-131, 0,43 kBq/m³
– Cs-137, 0,55 kBq/m³
– Co-60, 0,91/0,98 kBq/m³
– Integral (>100keV), 0,41 kBq/m³
Measuring Vessel: Stainless steel 304L
Volume: 25 liters
Construction: Fixed flanges with sealing rings and stainless steel screws
Detector Ø2″x3″ Nal(TI)
Temperature Range: 0°C to +50°C
Electronics: LB5340-1
Dimensions: (215 x 600 x 390) mm
Protection: IP55
Voltage: 230V
