Service & reparation Request a quoteRapid screening of processed or raw food products for key nuclides I-131, Cs-134 and Cs-137
- Clear, immediate indication if any nuclide-specific maximum permissible concentrations are exceeded
- Transportable using compact and wheeled detector shield
- Supports wide range of samples including 1 L Marinelli, metal food cans, beverage cans and plastic containers
- Completely battery-powered – from laptop PC’s USB port
- Room temperature operation with option for temperature stabilization if measurements will be made out of doors

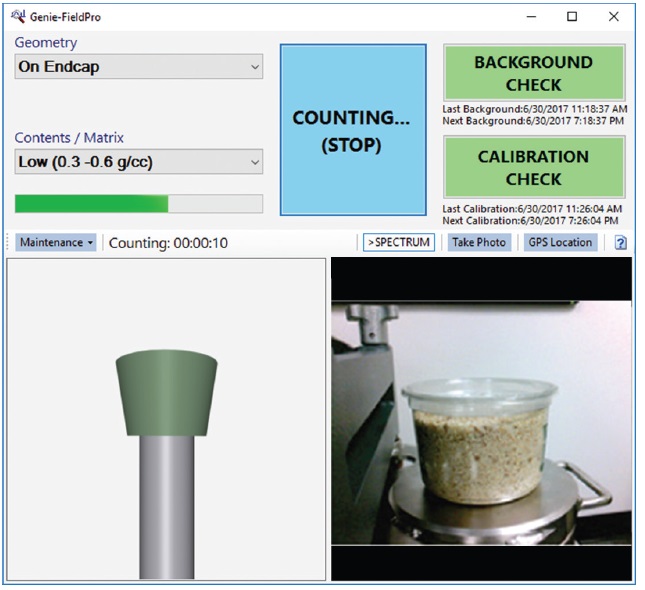

- Genie spectroscopy algorithms teamed with the intuitive Genie-FoodPro user interface designed for the application
The FoodScreen Radiological Food Screening System is a complete, transportable food analyzer for quickly determining whether raw or processed food has become contaminated from a radiological event. A sample is placed into the shield, a count is initiated and a final report is generated. The report lists activity or minimum detectable activity concentrations found in the sample for the key nuclides of interest for food products: Iodine-131, Cesium-134 and Cesium-137. Based on nuclide-specific limits pre-determined by the system manager, the report will also state whether the sample is “Clean” or “Above Limit”. Above limit samples may need to be investigated further in a higher resolution detector system such as the Mirion FoodSpec Radiological Food Analysis System.
The system consists of a 2″ NaI detector, Osprey multi-channel analyzer, 7F7 mobile lead protection, Genie and Genie-FieldPro software.
MDA targets, examples;
Container | Cs-137 typical target | Count time |
1 liter marinelli (water) | 20 Bq/l | 4 min |
Food can (veg/meat) | 50 Bq/l | 8 min |
35 cl soda can | 20 Bq/l | 110 min |
900 g plastic container | 50 Bq/l | 20 min |
Data sheet
Contact
Stefan Isaksson
- Sales - Radiation Detection
- Phone: +46 (0)18-566807
- Mobile: +46 (0)70-5926356
- stefan.isaksson@gammadata.se

Technical specification
Detector: 802-2X2 NaI(Tl) 2″
MCA: Osprey
Lead shielding: 7F7, 38 – 42 mm lead
Spectrocopic software: Genie 4.0
Weight: 166 kg
