Thymon – Thyroid uptake system
Need help?
We help you find the right solution. We offer support, service, calibration and training for all our products. Contact us for a service agreement!

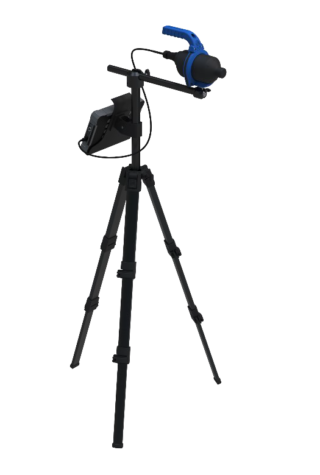

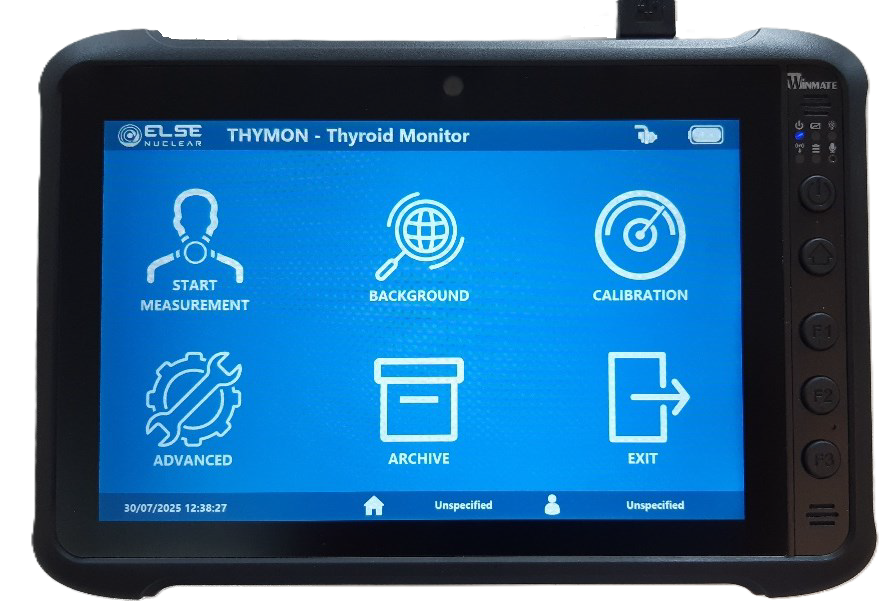

Service & reparation Request a quoteTHYMON is a portable and robust instrument developed for rapid and reliable screening of radioactive iodine (I-131) in the thyroid gland in radiological or nuclear emergencies. A field-ready instrument with low weight and high protection class that can be used under demanding environmental conditions, while an intuitive user interface enables efficient handling even under time pressure. The instrument combines efficient measurement and high measurement accuracy to quickly examine large groups of people. It has automated functions, such as activity calculation, age-adjusted calibration curves and temperature compensation, to ensure reliable and consistent results. An optimized design minimizes measurement uncertainties and makes THYMON a completely redesigned solution for emergency screening efforts.
Data sheet
Contact
Stefan Mårtensson
- Sales - Radiation Detection
- Phone: +46 (0)18-566803
- Mobile: +46 (0)76-8265837
- stefan.martensson@gammadata.se
Technical specification
Detector: 1.5″ x 1.5″ NaI(Tl) with SiPM and MCA. Temperature compensated.
Measuring range: < 100 Bq to > 3 MBq
Power: 320V, via computer/tablet UBS port
Battery life: 8 hours
Temperature: –20°C to +50°C

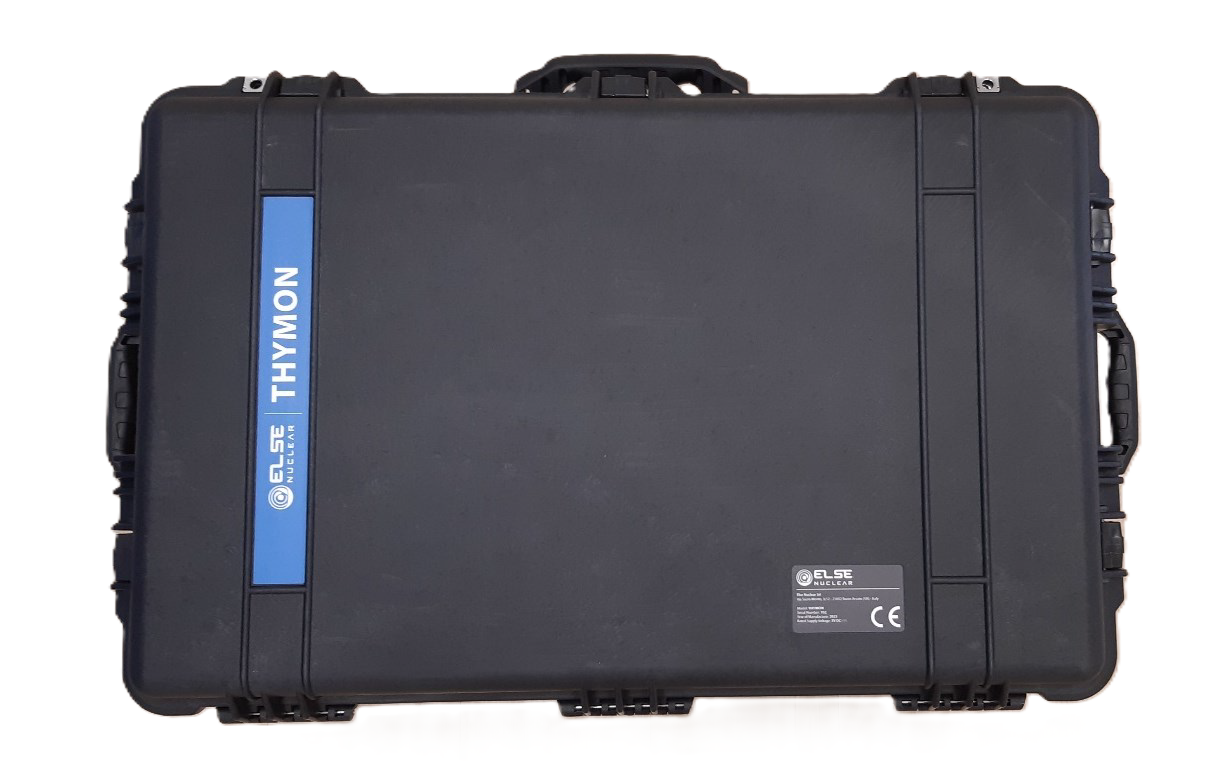

Transport case: PELI, type 1650. IP67
Total weight: 18.5 kg
Protection class Plate and Detector: IP65
Drop and shock test: meets MIL-STD-810
