Service & reparation Request a quote- Check source with threads

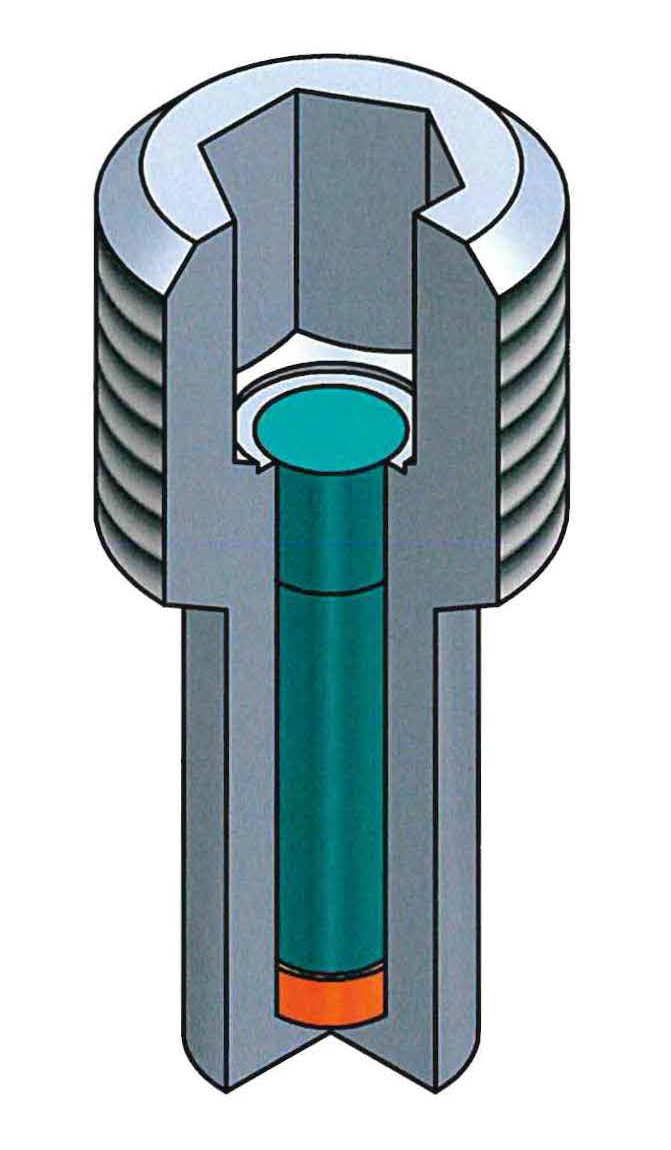

Check source with activity is incorporated into a ceramic pellet mounted in a brass capsule. The head of the capsule has an M8 thread, and a slot for a screwdriver so that the source can be mounted easily into a jig.
ISO classification C.33323
Contact
Stefan Mårtensson
- Sales - Radiation Detection
- Phone: +46 (0)18-566803
- Mobile: +46 (0)76-8265837
- stefan.martensson@gammadata.se
Technical specification
Isotopes: Cs-137, Eu-152, Co-60

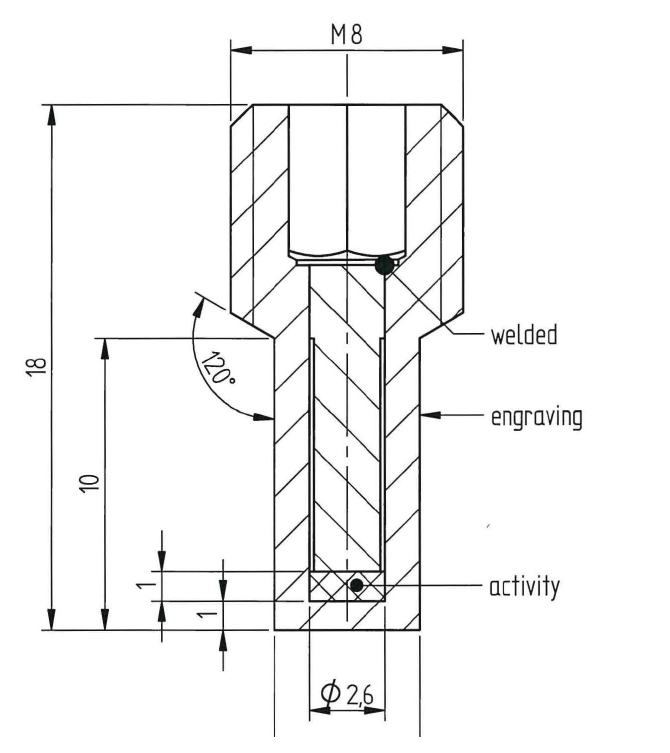

Drawing: VZ-5059-001, replacing VZ-269
Activities: 10 kBq – 300 kBq
Activity tolerence: ±10%
Activity diameter: 206 x 1 mm
Stainless steel M8, length 18 mm
