Sirius-5 Compact
Need help?
We help you find the right solution. We offer support, service, calibration and training for all our products. Contact us for a service agreement!

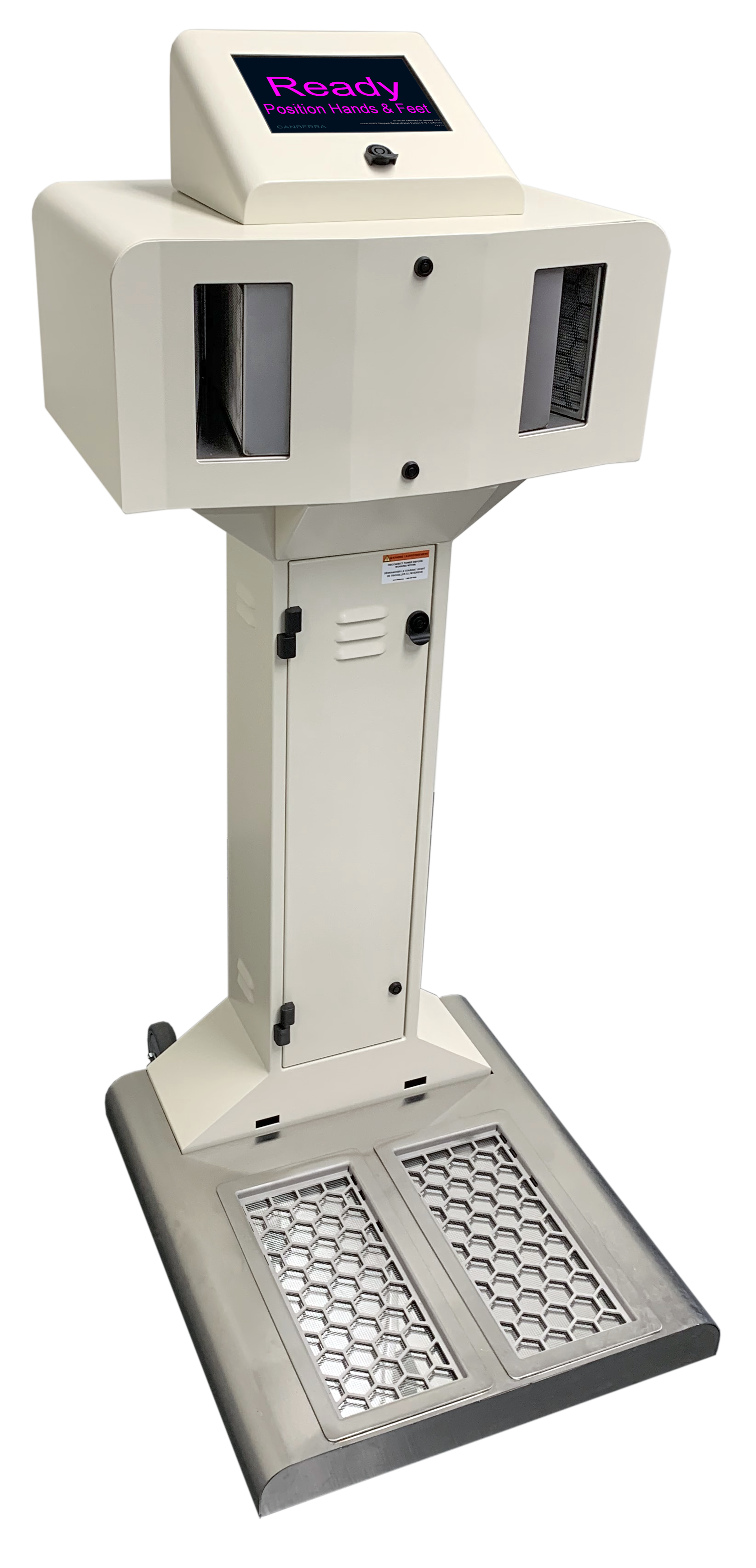

Service & reparation Request a quoteThe Sirius-5 Compact is a monitor for detecting contaminated hands and feet in environments where radioactive substances are present. It is compact and suitable for tight spaces, equipped with movable wheels for easy movement. The monitor has minimal maintenance needs. It is available in several configurations with different detector technologies, gas flow and plastic scintillation detectors, and measures alpha, beta and gamma radiation. The system uses the Windows 10 IoT operating system and offers remote monitoring and parameters that can be customized via touch screen or remote connection.
Data sheet
Contact
Göran Jonsson
- Sales - Radiation Detection
- Phone: +46 (0)18-566820
- Mobile: +46 (0)70-6220407
- goran.jonsson@gammadata.se

Technical specification
Detectors: Gasflow or Plastscint
Refreshes: 100 cm² CSP
Measures:
– alpha/beta (gas)
– beta, alpha/beta, beta/gamma (scint)
Window: 0.8 mg/cm² (gas) or 1.2 mg/cm² (scint)
Gas flow: 10 cm³/min
Outputs: 2 x USB, 1 x RJ-45
Dimensions: 1465 x 640 x 844 mm
Weight: 110 kg
Temp: 0 – 50°C
Power: 230V, 35W
