Low Voltage Boards

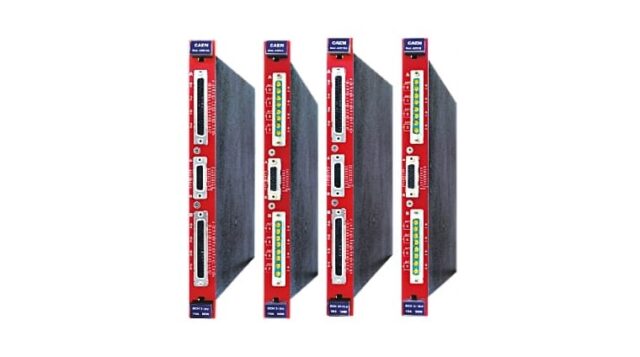

The family of low voltage (LV) power supplies includes single width boards housing 8 Individual Full Floating channels. The boards are designed to provide maximum voltages from 8 to 64 V (A255x), with up to 0.2 mV set and monitor resolution and can provide output power up to 60W per channel.

All the boards are provided with both current and voltage protections. If overcurrent occurs, the channel is signaled to be in “overcurrent” the relevant channel can be programmed either to turn off after a programmable trip time or to remain on and to provide the maximum allowed current. This feature allows the module to perform as a current generator.

The voltage ramp rates may be set independently for each channel. Moreover, the individual floating channels allow on-detector grounding, thus allowing to reduce the noise level. Output channels are delivered through DB37 or D-sub 8 connectors.
