Electronics and Power Modules
Gammadata is a long standing partner to the subnuclear, nuclear and atomic&molecular research communities, maintaining a steady commitment and track record of reliability for more than 30 years. We provide products which have become the standard for many research laboratories as well as providing state-of-the-art electronic solutions. Our suppliers and partners often prove their skills by providing the market novel front-line technology.
LYNX-II - Digital Signal Analyzer
The Lynx II DSA is the most advanced, full-featured Multichannel Analyzer ever offered. It is a 32k channel integrated signal analyzer based on...
Osprey - 14-pin MCA for scintillation spectrometry
The Osprey is a high-performance, fully-integrated multi-channel analyzer (MCA) tube base that contains everything needed to support scintillation...
DSA-LX - Digital Signal Analyzer
The DSA-LX analyzer is a full featured 16K channel integrated Multichannel Analyzer based on advanced digital signal processing techniques (DSP)....
DT5771 - MCA with open FPGA
The DT5771 is a high-performance 64k Digital Multi-Channel Analyzer (MCA) designed for gamma spectroscopy. It features a high-speed 14-bit, 200...
Topaz-Pico - Multi channel analyser
Topaz-Pico is a compact, stand-alone digital Multi-Channel Analyzer (MCA). Its pocket-size and low power consumption makes it attractive to the...
Up to 1.5 kV
From 8 to 48 independently controllable High Voltage channels 0 ÷ 1.5 kV (A1538D) and 0 ÷ 1/1.3/1.4 kV output voltage (A1515B) Maximum Current 10...

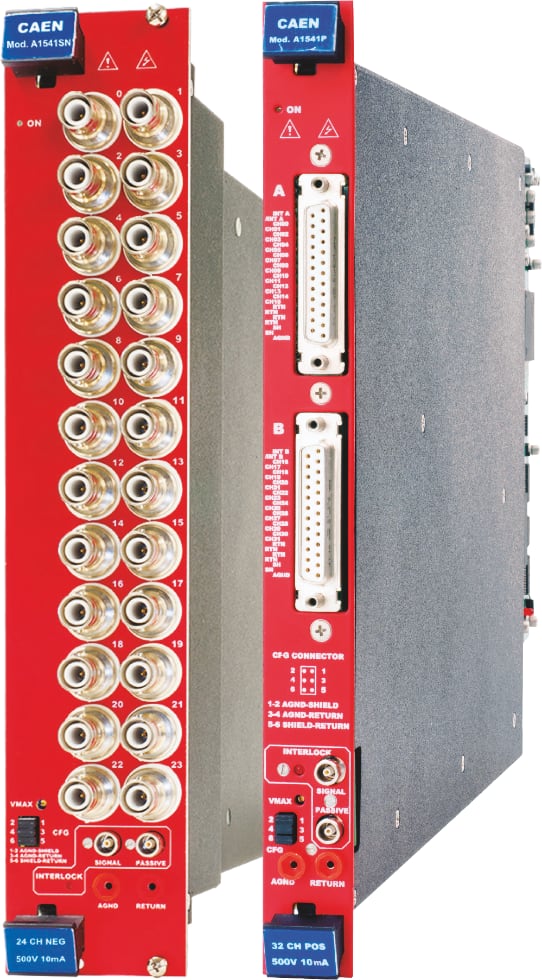

Up to 100 V
From 12 to 48 independently controllable High Voltage channels 0 ÷ 100 V output voltage Maximum Current: 1mA, 10 mA, 20 mA or 1 mA/100 μA (dual...
Gamma stream - Multi channel analyser
The Gamma stream is a compact and portable gamma ray spectroscopy system. The built-in positive high voltage supply, charge sensitive preamplifier...

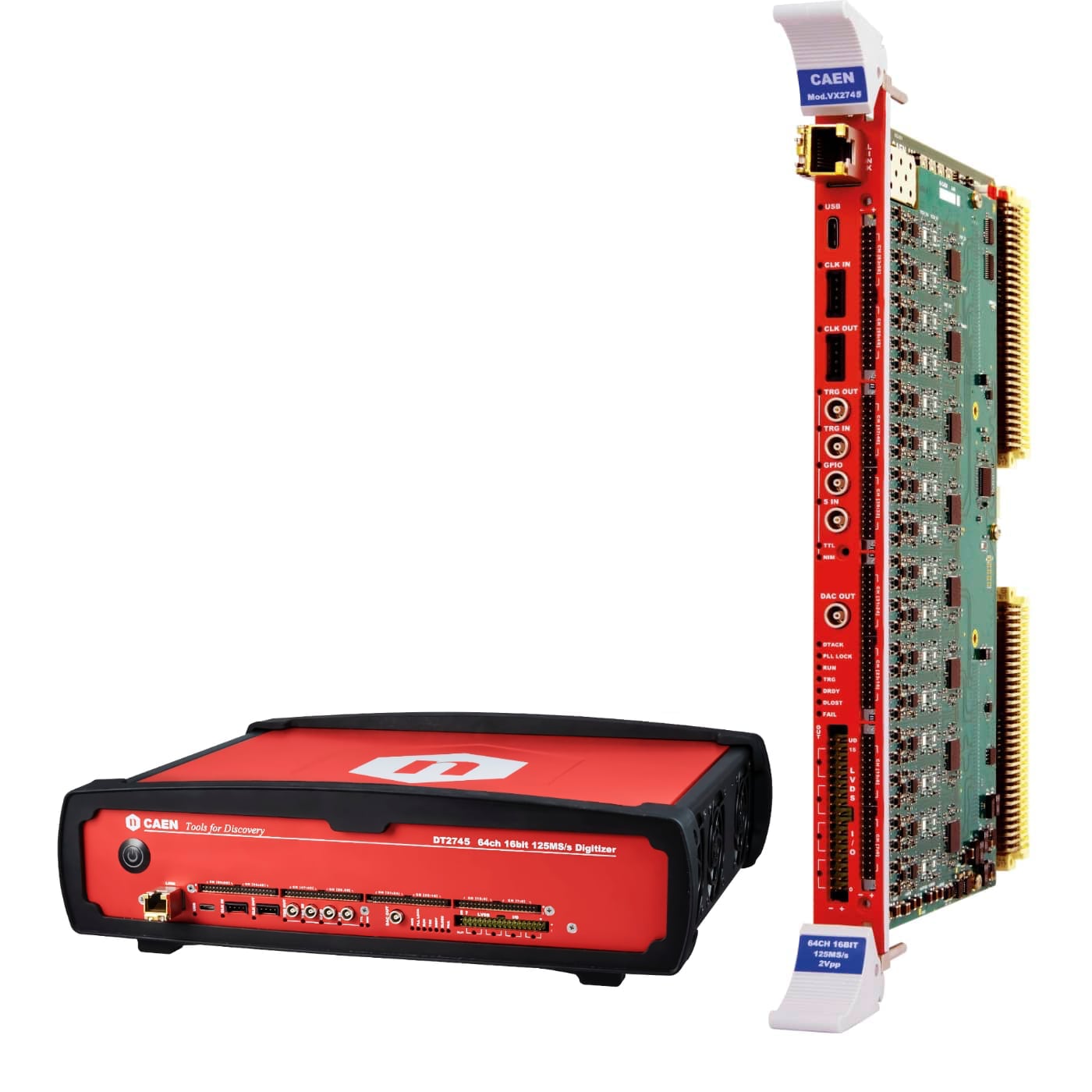

Digitizer 2745 series
High channel density: up to 64-channel, 125MS/s 16-bit ADC programmable input range, individual DC offset adjustment. Digital pulse processing and...
Digitizers 2730 series
The CAEN 2730 Digitizer Family is a high‑performance 14‑bit, 500 MS/s waveform digitizer series with 8, 16 or 32 channels, designed for nuclear...

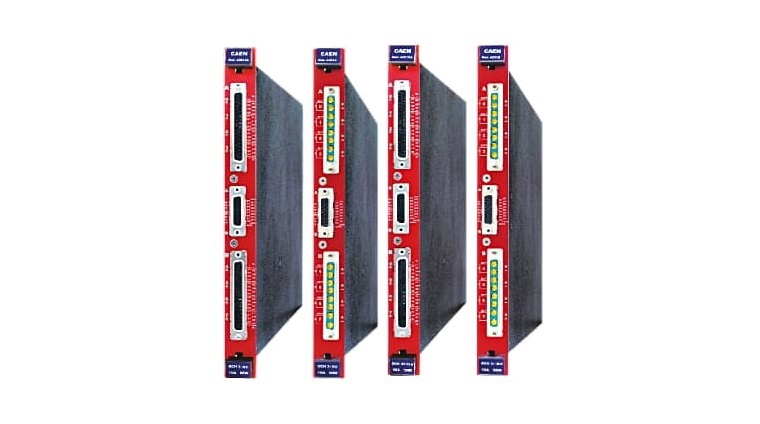

Low Voltage Boards
The family of low voltage (LV) power supplies includes single width boards housing 8 Individual Full Floating channels. The boards are designed...

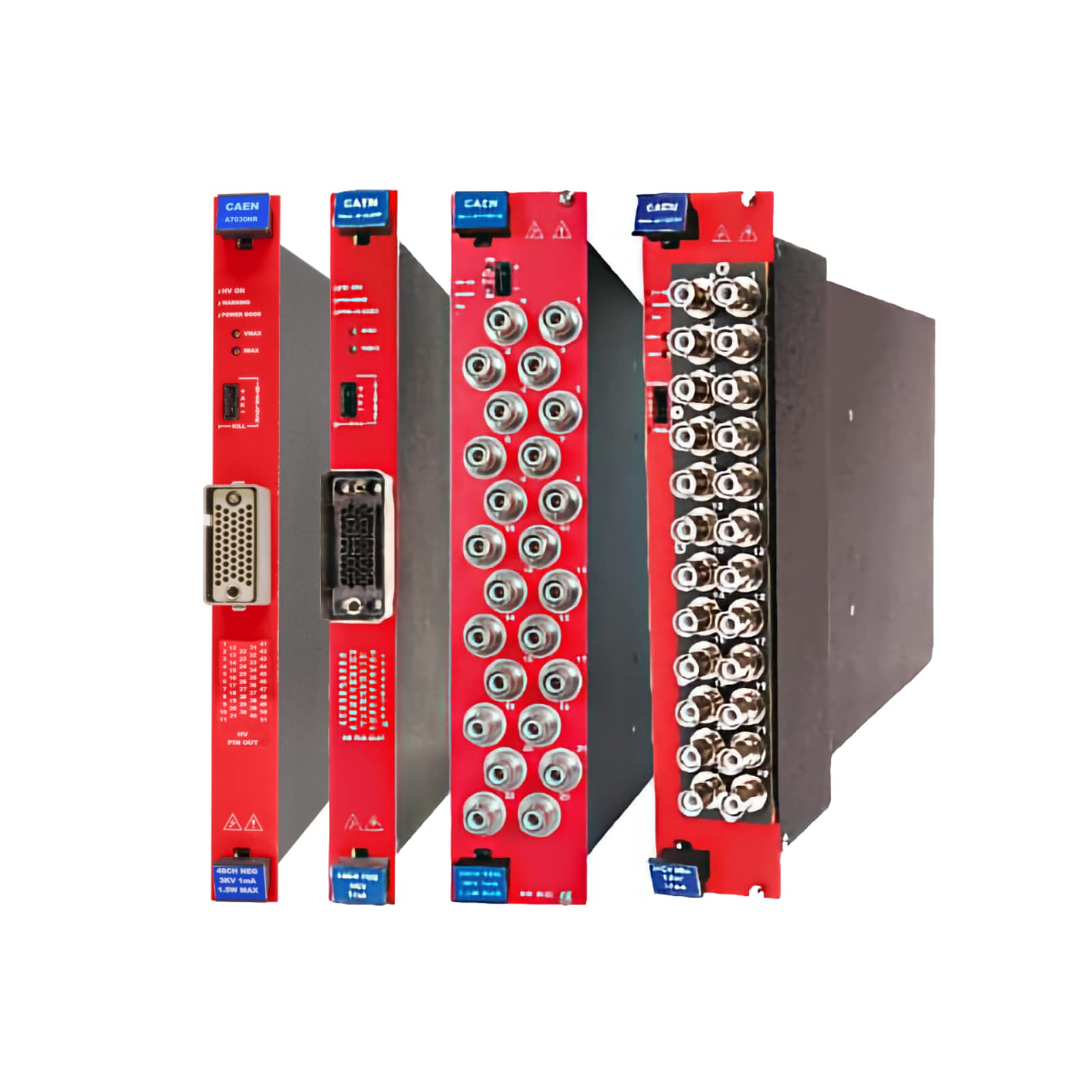

Up to 3.5 kV
From 12 to 48 independently controllable High Voltage channels 0 ÷ 3.5 kV output voltage Maximum Current 3.5 mA Either Multipin or SHV...

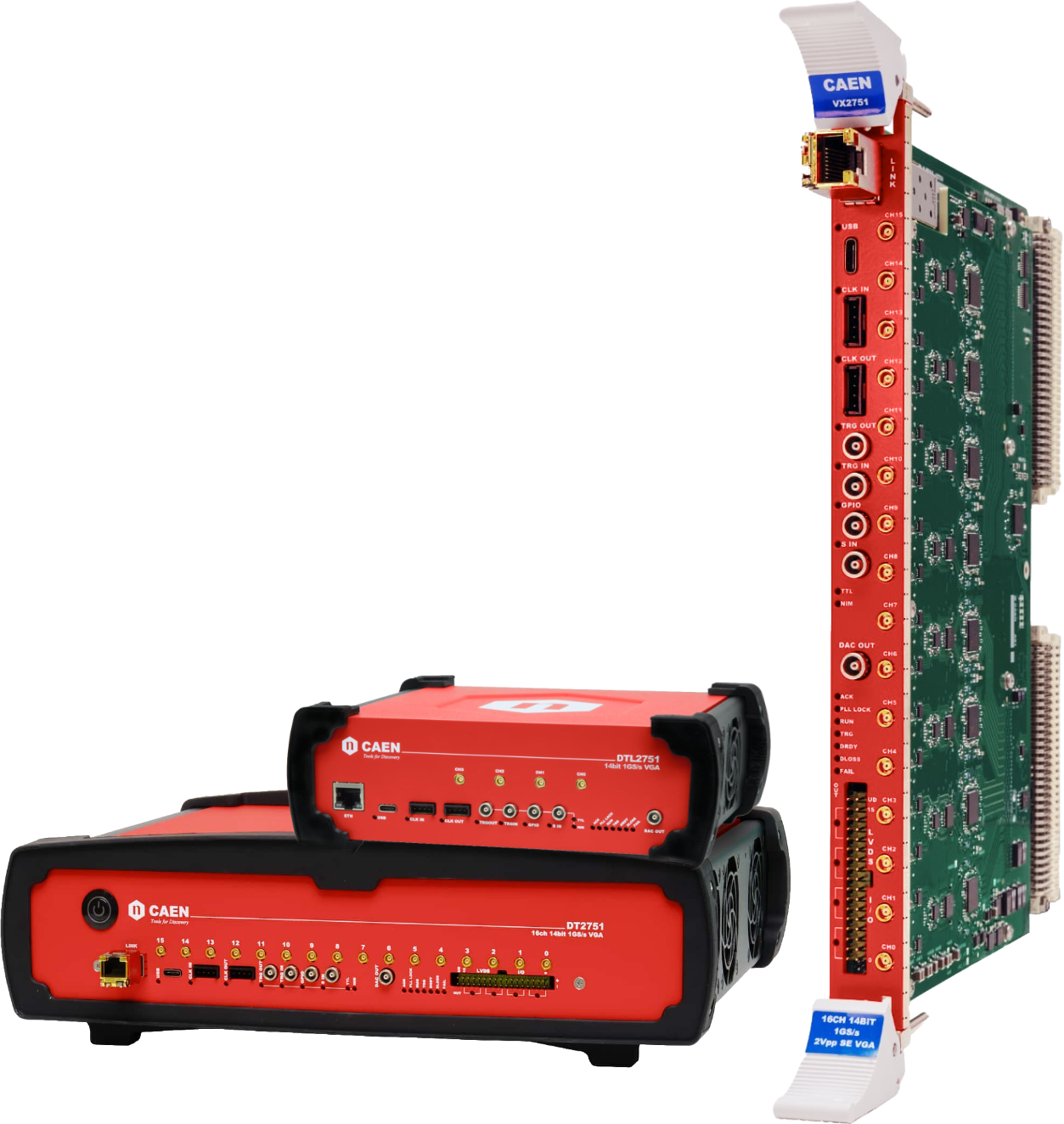

Digitizer 2751 series
High-speed digitizer: 4 or 16 independent input channels, 1 GS/s 14-bit ADC, individual DC offset adjustment and Software selectable analog gain...

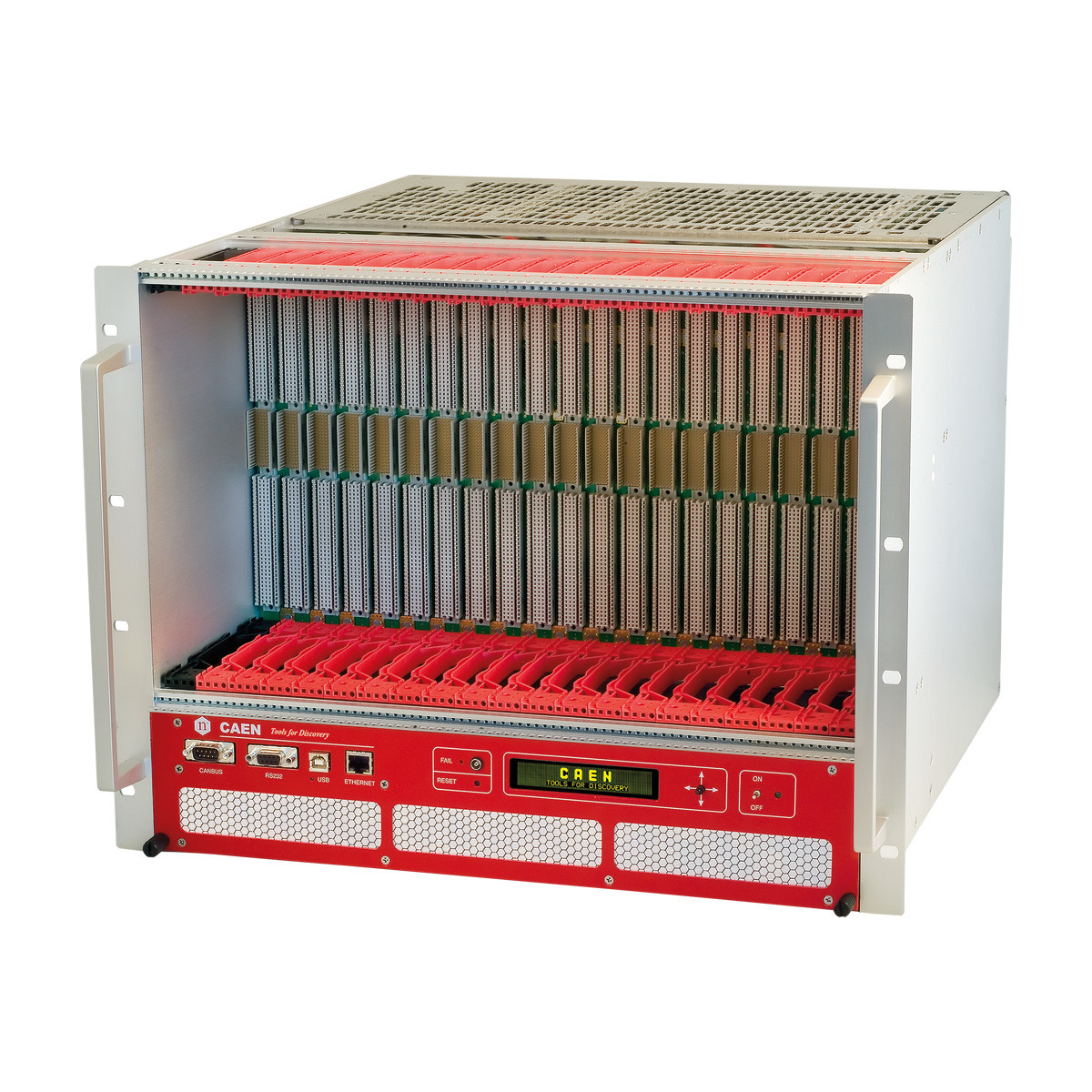

VME powered crates
CAEN’s range of VME powered crates covers both the Enhanced and Low Cost series, providing scalable solutions for different levels of VME systems...

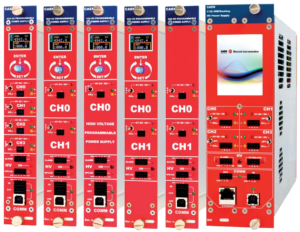

Up to 15 kV
Up to 8 high voltage channels 15 kV maximum output voltage Maximum Current 1 mA CPE HV connectors Available with either positive or negative...

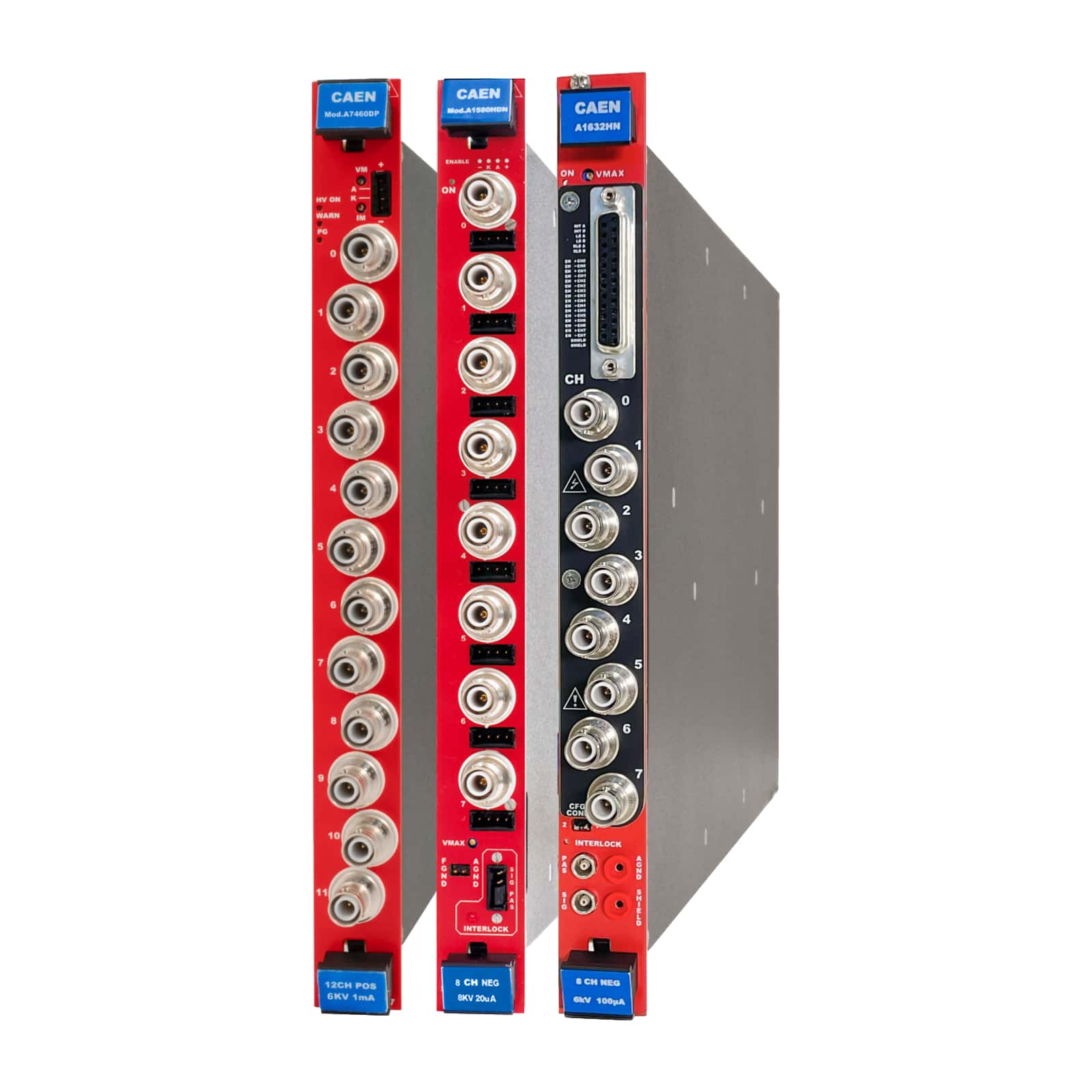

Up to 8 kV
From 8 to 12 independently controllable High Voltage channels 8 kV maximum output voltage Maximum Current 1 mA SHV connectors Available with either...
DT547x series power supply
The DT547x is a CAEN Power Supply Family providing a Single High Voltage channel in a small size Desktop form factor. The unit is powered and...

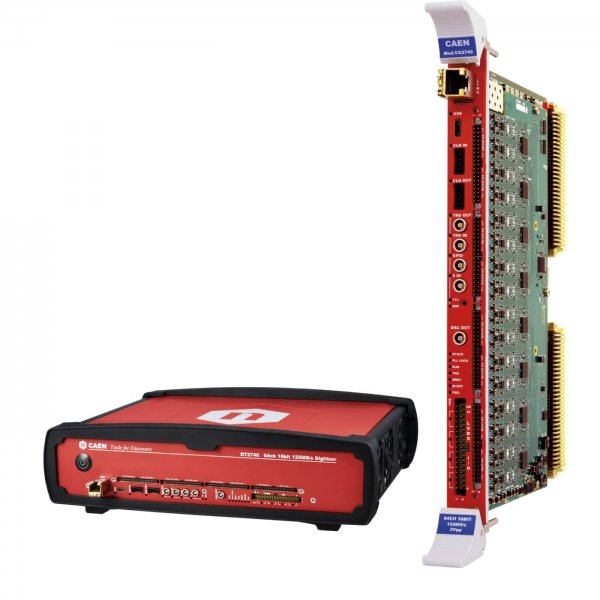

Digitizer 2740 series
The CAEN 2740 digitizer family is a 64‑channel, 16‑bit, 125 MS/s digital signal processor for radiation detectors, available in VME64, VME64X and...

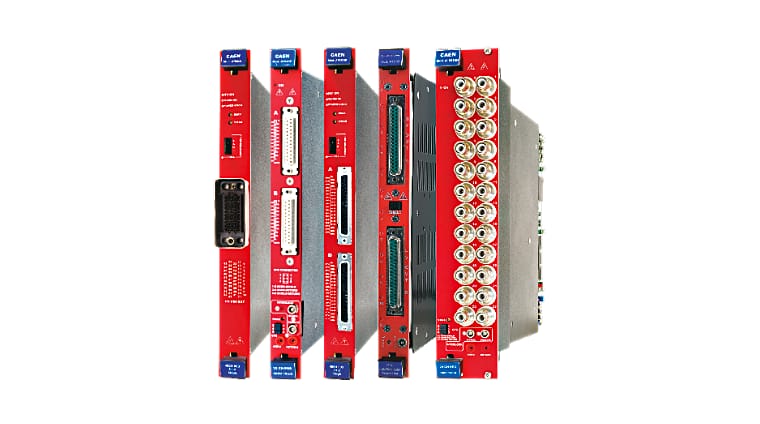

Up to 500 V
From 12 to 48 independently controllable High Voltage channels 0 ÷ 500 V output voltage (0 ÷ 250 V, A1619) Maximum Current 1, 10 mA or 1 mA/100...
A1424 preamplifier for scintillators
Fast and low noise preamplifier for nuclear and high energy particle physics. It has two inputs and one test input for calibration. FAST input is...
DT5533E
The CAEN Mod.DT5533E is a desktop module housing 4 independent High Voltage Power Supply Channels 4 kV, 3 mA (4 W max). The unit is available with...
DT5730S
The CAEN Mod. DT5730S is full replacement of previous DT5730. The hardware has been upgraded, introducing a larger FPGA to accommodate more complex...
Hexagon Family
Hexagon is a high precision 32k MCA available in single and dual input channel versions. This compact, high performance desktop MCA includes...

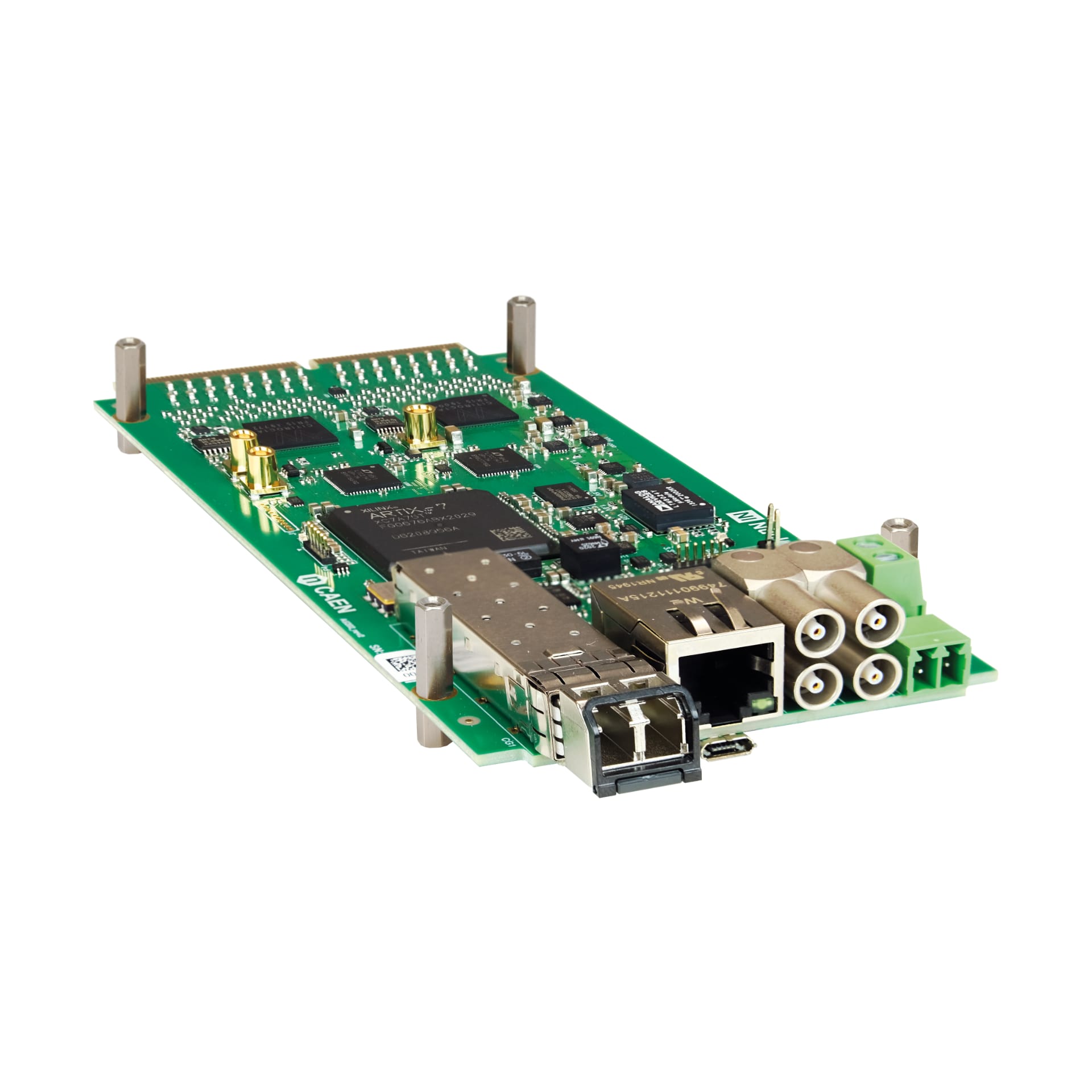

A5202 & DT5202
The A5202 is a small board (~ 7 cm x 17 cm) housing two Citiroc-1A chips (64 readout channels). Each readout channel is composed of a Preamplifier, a...
