Digitizer 2751 series

We help you find the right solution. We offer support, service, calibration and training for all our products. Contact us for a service agreement!

Service & reparation Request a quote

High-speed digitizer: 4 or 16 independent input channels, 1 GS/s 14-bit ADC, individual DC offset adjustment and Software selectable analog gain (VGA).

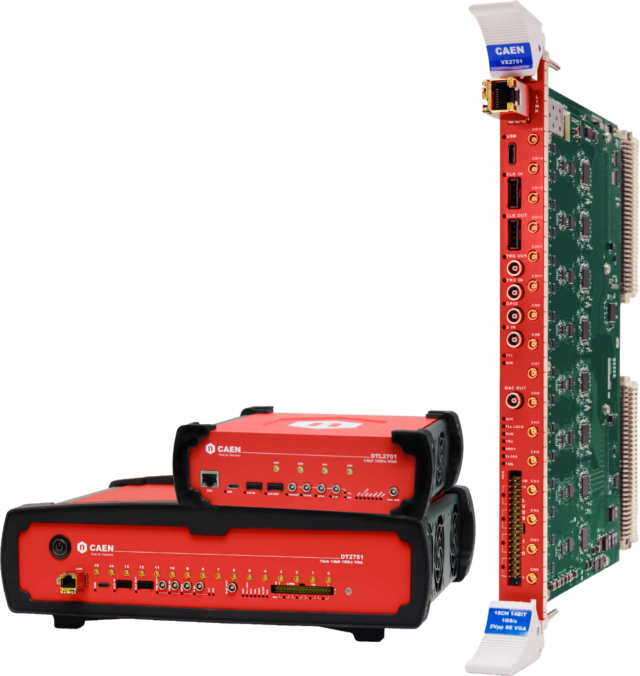

Available in Desktop (DT2751, DTL2751) and VME64X (VX2751) fully compliant with CAEN μ-crate module module
Front panel readout via USB-3.0 or 1/10Gb Ethernet
Embedded Processing (Open-ARM platform):
- 16 input channels (DT2751, VX2751): Xilinx Zynq® UltraScale+™ MPSoC with integrated Arm® CPU
- 4 input channels (DTL2751): Xilinx Kintex® UltraScale+™ FPGA with an embedded ARM processor
Open FPGA architecture fully supported by Sci-Compiler tool
Ready-to-Use Firmware solutions for Charge Integration (PSD) and Waveform Recording
Triggered and streaming readout modes supported
System features: Multi-board synchronization, digital I/Os for trigger logic, on-board storage of multiple firmware images, and integrated web interface
Software ecosystem:
- GUI-based readout software available for multiparametric spectroscopy (CoMPASS) or waveform recording (WaveDump2)
- Firmware/software generator and compiler for the Open FPGA (Sci-Compiler), eliminating the need for FPGA programming skills
- Libraries (FELib) and demo codes are provided for software customization
