Service & reparation Request a quote- Human portable radiation detection system with hand-free operation
- Real-time mapping
- Instant identification, even of complex scenarios of masking and/or shielding
- Expert or simplified mode
- Information transfer to Smartphone or Tablet PC
- Remote supervision with SpirVIEW or any other installed supervision system
- Optional neutron detectors, two versions

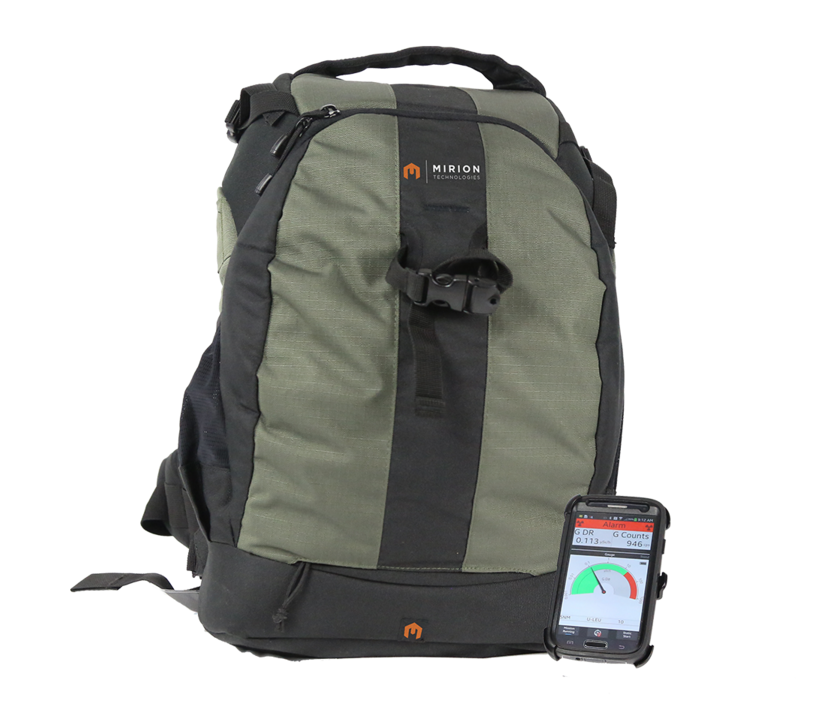

The SPIR-Pack is a backpack device which provides discrete search and identification of radiological and nuclear materials. It is also a powerful tool for mapping of contaminated areas that may be difficult to access by vehicle. The SPIR-Pack is based on the “detection by identification” concept, which limits alarms to cases of real threats only while filtering out any false alarms generated by background variation or anomalies such as medical isotopes. It is a high performing system for heavily shielded and complex masking scenarios seen in radiological security endeavors.
Data sheet
Contact
Stefan Mårtensson
- Product Manager
- Phone: +46 (0)18-56 68 03
- Mobile: +46 (0)76-826 58 37
- stefan.martensson@gammadata.se
Technical specification
Detectors: NaI (Tl): 3” x 3”, Geiger Muller for high dose rate
Energy range : 25 keV to 3 MeV (gamma)
Sensitivity : 4 cps per nSv/h for Cs-137
Dose rate range: 1 nSv/h – 100 mSv/h
Identification: 1024 channels, throughput > 100 000 cps
Calibration & Stabilization: Continuous stabilization and acquisition of spectra, no field calibration needed
Display: Rugged Tablet with a sun readable 7” screen
GPS: Imbedded
Connectors: USB plug
Battery Life: Autonomy up to 14 hours
Alarms:
– Smartphone : visual, audible and vibration alarms with release
– Bluetooth headset : audible message
– Danger alarm
Communication: Bluetooth, WiFi, cellular communications. Data export. Remote control
Dimensions : 450 x 330 x 250 mm
Weight: 4,6 kg (G) 10,1 kg (GN)
Temperature range : storage : -30°C to +60°C. Tablet PC into the backpack : -20° C to +40°C. Tablet PC out of the backpack : –20°C to +50°C
Protection Class: IP54 protection
Identification Library: Appr 90 radionuclides. Up to 8 mixed radionuclides
Radionuclide library :
– Homeland Security
– Nuclear Power Plant and radioactive waste
– Nuclear accident
– Fuel cycle
– CTBTO/ OSI
– Laboratories and miscellaneous
ACCESSORIES
• Tablet PC: power supply cable, docking station
• Smartphone: power supply cable
• Bluetooth headset
• SpirVIEW and GENIE analysis software
OPTIONS
• SpirTRAINING software for a sourceless training
• SpirVIEW software for mobile units supervision on a single map
