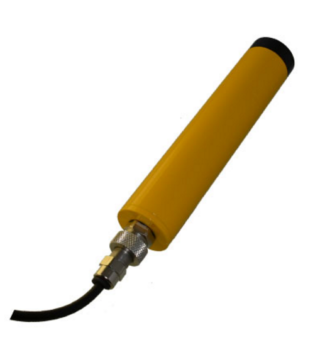

GMP-12UW – under water probe
Need help?
We help you find the right solution. We offer support, service, calibration and training for all our products. Contact us for a service agreement!
Service & reparation Request a quoteGMP-12UW is an external detector with the RDS-32 and RDS-31 /iTx/ iTxSD especially for high dose rate measuring applications, like in reactor pools. The probe can be connected on-the-fly without the need for switching off the meter. The RDS recognizes the probe connection and the user can select the appropriate type from the suggestion list type, to set the meter reading to desired measuring unit. The calibration coefficient for the GMP-12UW is delivered with the probe.
Data sheet
Contact
Stefan Mårtensson
- Sales - Radiation Detection
- Phone: +46 (0)18-566803
- Mobile: +46 (0)76-8265837
- stefan.martensson@gammadata.se
Technical specification
Radiation detected: gamma ambient dose equivalent H*(10)
Energy range: 60 keV – 6 MeV
Detector type: silicone PIN diode
Dose measurement range: 1 μSv – 500 Sv
Dose linearity: (+ 15%)…500 Sv (+ 30%)
Dose rate measurement range: 10 μSv/h – 10 Sv/h
Calibration accuracy: 5% of the reading in 3 mSv/h Cs-137
Energy response: -20% to +30%
Protection class: IP68
Connector: installed IKELITE 7 connector on detector body (cable not included)
Cable: standard lengths 10 m and 50 m. Cables are sold separately
Dimensions: Ø 35 mm, Length 185 mm
Weight: 400 g
Temperature range: operation -40°C to +55°C
