Techmart LS-series Lead Castles

Need help?

We help you find the right solution. We offer support, service, calibration and training for all our products. Contact us for a service agreement!

Service & reparation Request a quote

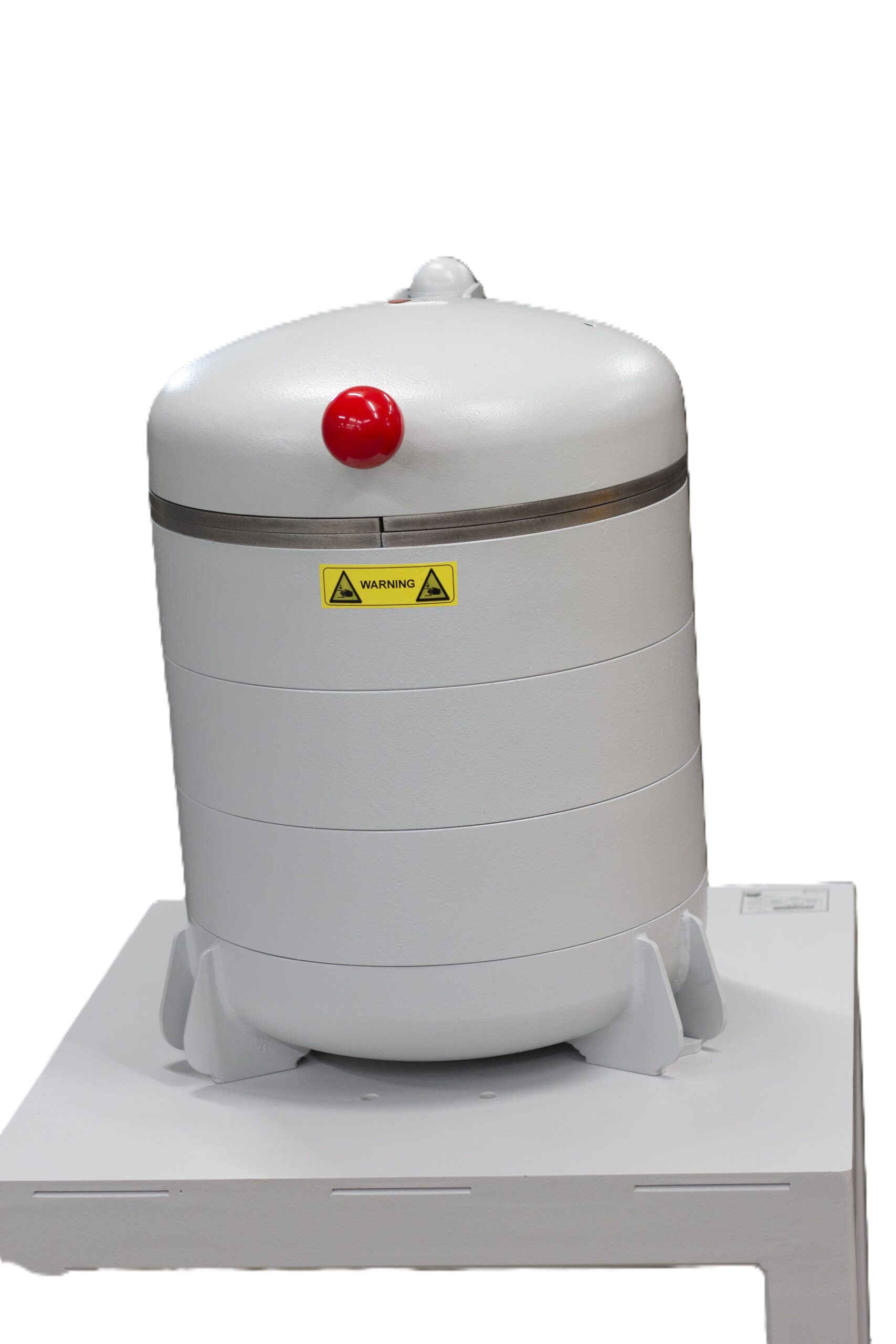

The LS lead castles from Techmart are compact and user-friendly, requiring only 600 x 600 mm floor space. These modular shields with parts under 150 kg each are easy to transport and install. They offer flexible cover setup without rear clearance and a reduced-mass design for effortless opening and closing. A 1.0 mm tin and 1.5 mm copper graded liner prevent interference from secondary lead x-rays. The exterior has a light grey polyurethane finish, and the interior is coated for oxidation prevention. The shield’s floor accommodates various cryostats, and it comes with an adjustable table for precise detector positioning. An optional back shield is available for detectors with a remote detector chamber (RDC).

  • 10 cm thick lead with steel jacket
  • Graded tin and copper liner

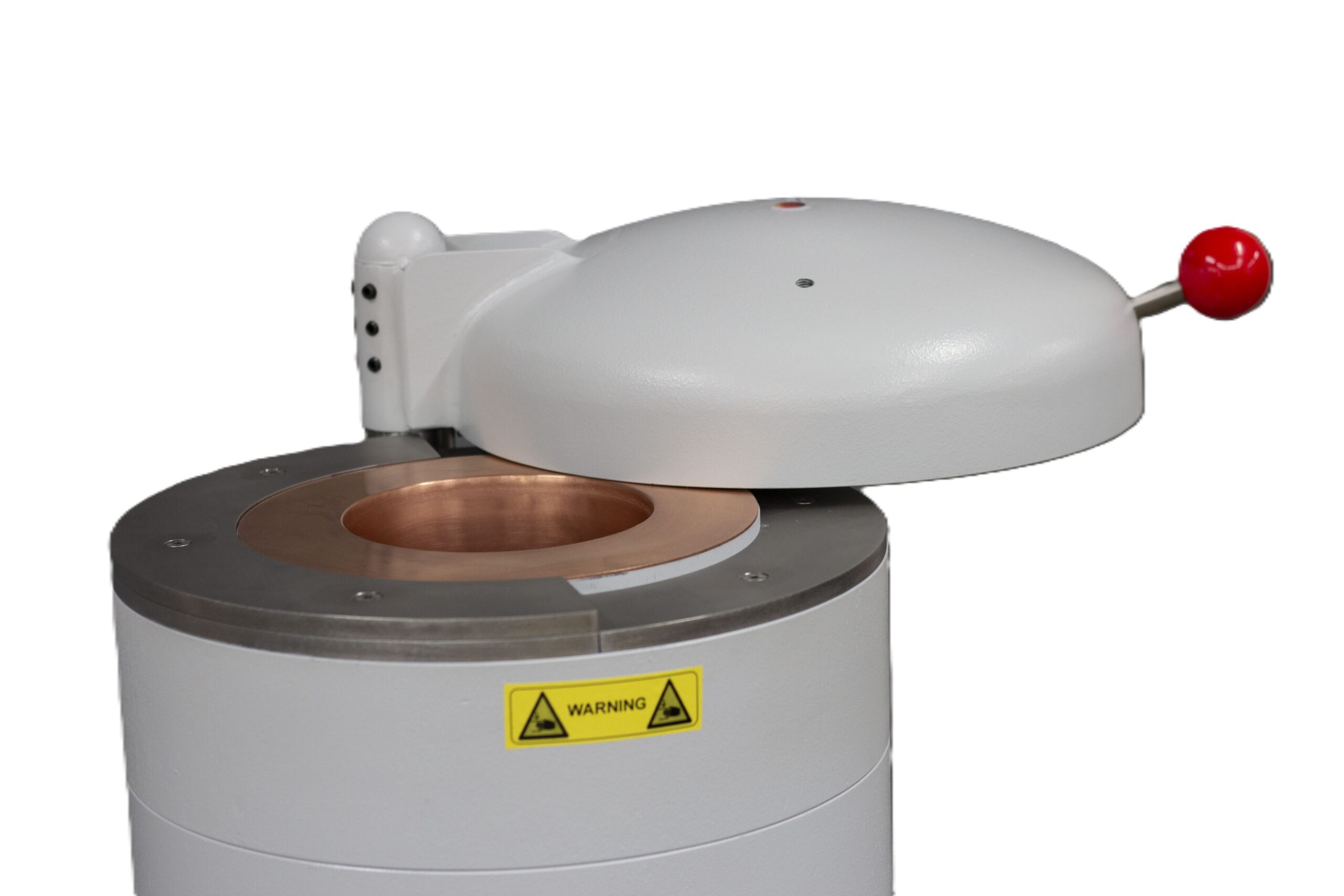

  • Reduced-mass swing cover with variable opening direction
  • Table with adjustable oversized foot pads
  • Modular design for easy installation
  • Compatible with both liquid-nitrogen and electrically cooled cryostats

Contact

Stefan Mårtensson

Stefan

Technical specification

Mechanical: Datasheet
Shielding:
Standard Series – 100 mm Pb
LS/LL Economy Series – 75 mm Pb, 25 mm ULB Pb, a(210Pb) < 30 Bq/kg
Liner:
Sn, 1.0 mm
Cu, 1.5 mm
Finish: Light grey (RAL 7035) polyurethane paint
Options:

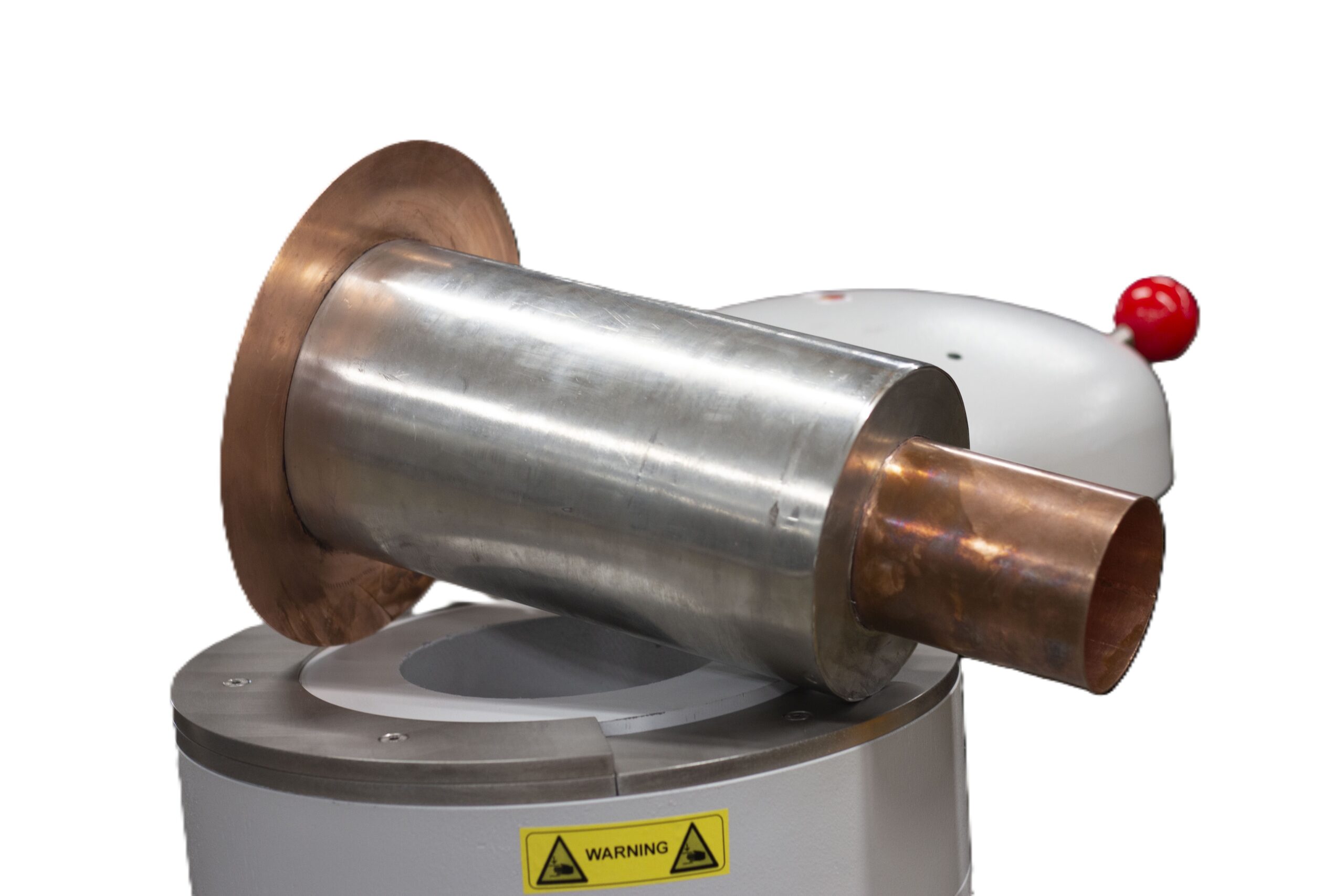

Split back shield for RDC-4 detectors, 10 cm long, felt lined
Simple detector lift for CP-5 detectors
Advanced detector lift for CP-5 detectors
